Concrete Floor Thickness Requirements for Car Hoists

Crucial Considerations for Successfully Installing a Car Hoist in Your Garage

If you are considering the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets the required specifications. A robust and stable foundation is not only vital for the smooth operation of the hoist but also critical for the safety of your vehicles and anyone using the equipment. Diligent preparation and strict adherence to guidelines can greatly enhance both the performance of the hoist and its longevity, making your investment worthwhile.

Most car hoists necessitate a concrete slab that is at least 100mm (4 inches) thick. This specific thickness is crucial as it allows for even weight distribution from both the vehicle and the hoist, thereby reducing the likelihood of potential cracking or subsidence over time. For more heavy-duty hoists, considering a thicker concrete slab, potentially up to 150mm (6 inches), is advisable to ensure optimal performance and safety.

Comprehensive Steps to Precisely Assess the Necessary Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a fundamental aspect of the safe installation and functional operation of a car hoist. It is essential to consider several factors when determining the suitable depth of your slab to ensure it can adequately support the loads it will experience during use. Gaining a thorough understanding of these factors can help you avoid costly mistakes and significantly enhance the safety of your garage setup.

Evaluating Load Capacity for Effective Car Hoist Installation

Car hoists exert considerable stress on the concrete floor beneath them. Therefore, it is vital to comprehend the total weight that your concrete floor must support. This evaluation includes not only the weight of the vehicle but also the weight of the hoist itself, which can add a substantial amount of load to the floor. Understanding these dynamics is critical for ensuring a safe working environment.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Furthermore, it is prudent to incorporate extra weight as a safety margin to guarantee that the structure can handle unforeseen circumstances. This precaution is essential for maintaining safety and stability.

For most residential garages, a concrete thickness ranging from 100 mm to 150 mm is usually sufficient. However, if you anticipate lifting significantly heavier vehicles, it may be imperative to consider a thicker slab to ensure safety and operational stability during use. Consulting with a structural engineer can provide valuable insights tailored to your specific situation.

Examining Various Types of Car Hoists and Their Concrete Thickness Requirements

It is vital to understand that different types of car hoists come with distinct requirements regarding concrete thickness. Among the most popular options for homeowners looking to add a car hoist to their garage are two-post lifts and four-post lifts. Each type has its unique load characteristics that necessitate careful consideration.

Two-post lifts typically exert pressure on specific points, making it essential to have a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This ensures that the hoist can operate safely and reliably.

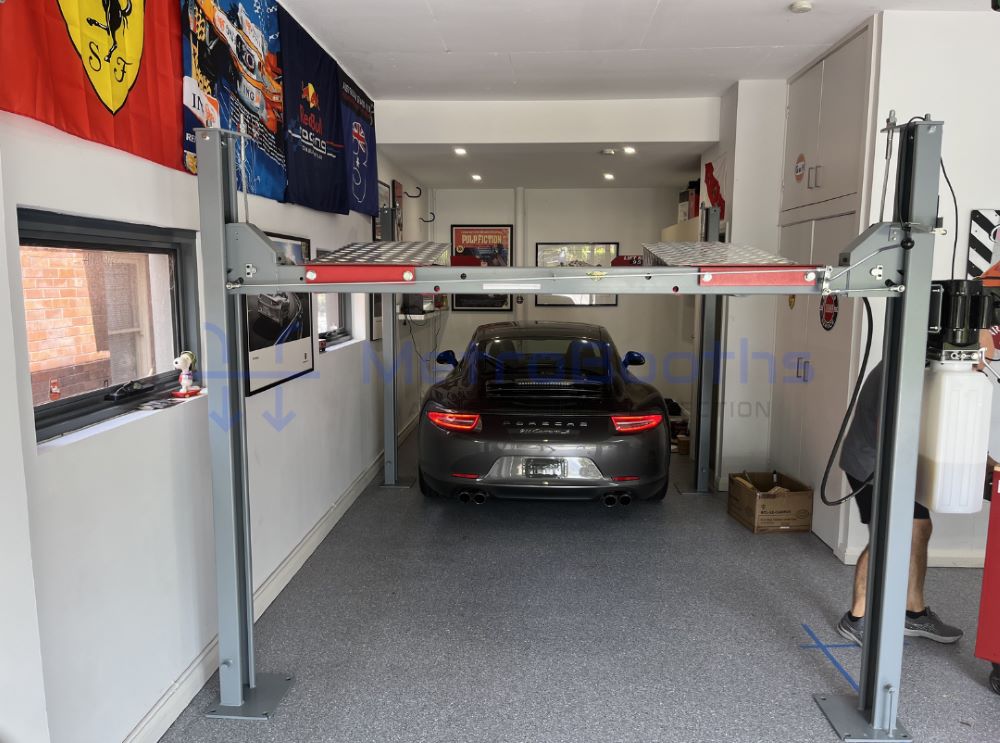

Conversely, four-post lifts tend to distribute weight more evenly across a broader area, allowing them to function effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This differentiation is crucial for informing your planning and installation decisions.

It is always advisable to consult the manufacturer's specifications for the hoist you are considering, as they usually outline the minimum concrete thickness required for safe operation. Following these guidelines is vital for ensuring optimal performance and durability of your hoist.

Bear in mind that these recommendations are general guidelines. Your specific requirements may vary depending on the configuration of your garage and the types of vehicles you intend to lift, so adjustments may be necessary.

Recognising the Significance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as important as its thickness. Stronger concrete can often be effectively used at a thinner depth while still providing adequate support for heavy loads, which is particularly relevant in the context of a car hoist installation. Understanding concrete's compressive strength is crucial to ensure safety.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting, ensuring reliability and safety.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor, allowing you to utilise a thinner slab while still ensuring it can effectively support heavy loads during operation. This consideration is essential for the longevity of your installation.

For most home garages, SL82 mesh presents a reliable option, providing sufficient strength for the majority of car hoists without incurring excessive costs. This balance between strength and cost is vital for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This addition can assist in mitigating the formation and propagation of small cracks over time, thereby enhancing the durability and longevity of your installation.

Vital Installation Factors for Ensuring Successful Car Hoist Operation

When it comes to installing a car hoist, meticulous site preparation and ongoing floor maintenance are of utmost importance. By giving careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately safeguarding your investment and enhancing user experience.

Essential Site Preparation and Concrete Pouring Techniques for Successful Car Hoist Installation

Before the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability. This proactive approach is key to ensuring your hoist operates safely and effectively.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and advise on necessary improvements.

Crucial Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality of your hoist. This vigilance is essential for the longevity of your equipment.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan. This investment in maintenance can save you considerable costs in the long run.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step is vital for preventing costly repairs and ensuring safe usage of your hoist.

Think about applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Common Questions Regarding Car Hoist Installation and Concrete Thickness Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, providing clarity and guidance.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation, ensuring optimal safety.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing you with peace of mind and security.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation, ensuring reliable functionality.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, particularly in high-demand environments.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for tailored load ratings specific to your situation and requirements, ensuring safety.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a prudent choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, thereby protecting your investment.
