Shed Wiring Tips for Electricians in Rural Areas

If you have a shed located on acreage and find managing extension cords from your home to be cumbersome, it is crucial to ensure that your shed is properly wired. Whether you need a simple storage shed that requires just a light and a power point, or a fully equipped workshop that operates welders and compressors, adhering to the correct procedures is essential. In NSW, the only legal way to achieve this is by hiring a licensed electrician, who possesses the necessary skills and knowledge to ensure safety and compliance.

This comprehensive guide outlines the vital steps to electrify your shed, detailing what your electrician will require for the installation process and providing a cost estimate for the Mid North Coast region.

Upgrade Your Shed's Power Supply: Discover the Essentials of Cable Runs

The foremost consideration for any shed wiring project is the efficient transmission of power from your main switchboard to the shed itself. On larger properties, this distance can span 30, 50, or even over 100 metres. The longer the run, the larger the diameter of the cable required to effectively manage voltage drop and ensure reliable performance.

When planning cable runs, you generally have two primary options available:

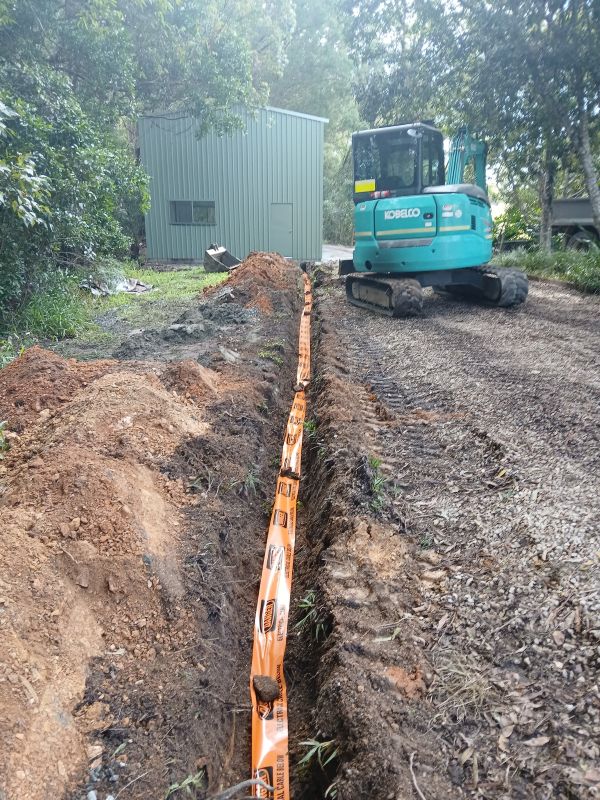

• Underground cable run — This is the most popular and visually appealing choice. Your electrician will install durable cable through orange conduit buried at least 500mm deep, or deeper in areas frequently traversed by heavy vehicles. This method protects the cable from extreme weather conditions, wildlife interference, and falling branches, making it the preferred option for most properties with substantial acreage.
• Overhead cable run — Though less common, this alternative may be necessary if solid rock is present or if the terrain complicates trenching. Overhead runs must adhere to specific clearance heights and require support poles, which can considerably escalate costs.

For the majority of properties in or around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is the most recommended method. Your electrician in Bellingen can evaluate your site and suggest the optimal route for installation.

Establishing a Reliable Power Supply for Your Shed: Importance of a Dedicated Sub-Board

Merely running a single cable to the shed and connecting appliances is insufficient. Any shed that is equipped with a proper power supply must feature a dedicated sub-board, commonly known as a distribution board. This device serves as a mini switchboard within the shed, efficiently managing all circuits and ensuring safety.

Your sub-board typically consists of the following essential components:

• Main switch — This component enables you to isolate all power to the shed independently from the main house, enhancing safety and control over the electrical supply.
• RCDs (Residual Current Devices) — These devices, mandated by NSW electrical regulations, provide rapid power cut-off in mere milliseconds in the event of a fault. This feature is crucial for safety in a shed environment where moisture, dust, and damaged leads can frequently occur.
• Circuit breakers — These components provide individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits, ensuring that your electrical setup operates safely and efficiently.

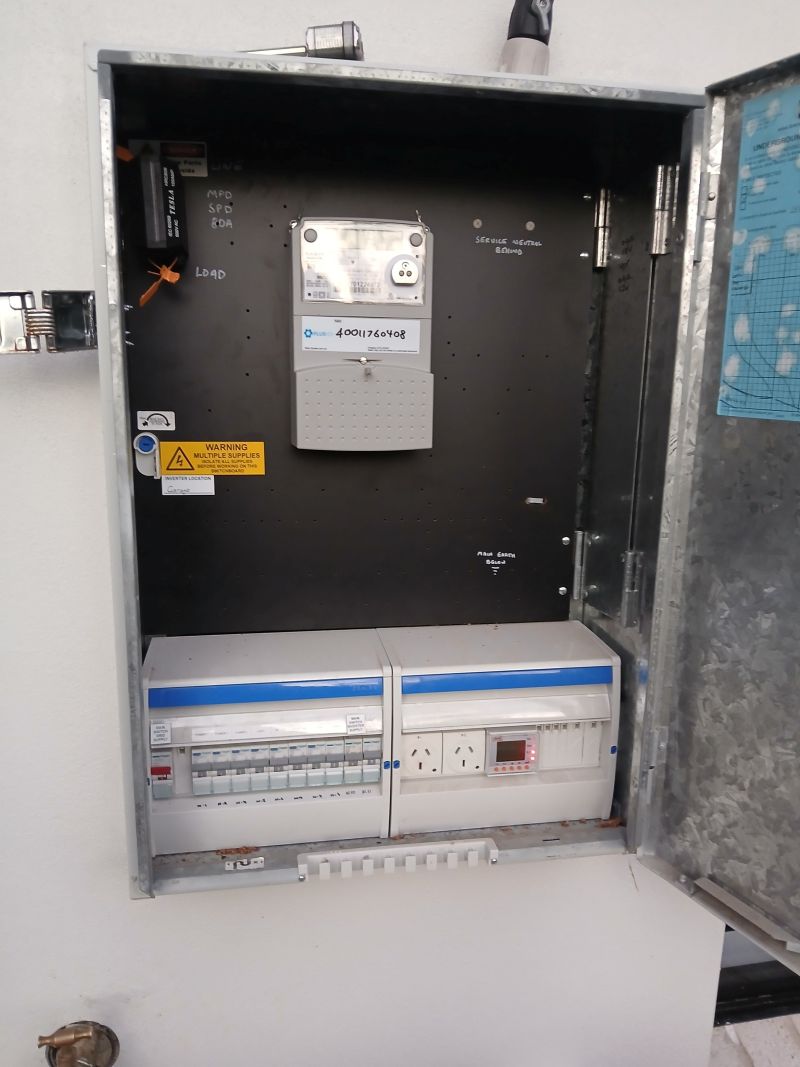

If your house's switchboard is outdated, your electrician may also recommend upgrading it to effectively accommodate the additional load directed to the shed.

What Key Features Should Be Installed Inside Your Shed for Maximum Efficiency?

The specific installations that your electrician performs inside the shed will depend entirely on its intended purpose. Here’s an overview of typical setups for various applications, providing you with a clearer picture of what to expect.

Creating an Efficient Basic Storage Shed

If your shed primarily serves as a storage area for tools, a ride-on mower, or other equipment, consider implementing the following setup to maximise functionality:

• LED batten lights — One or two ceiling-mounted LED batten lights will effectively illuminate the entire area, ensuring you can easily find what you need. Your electrician can offer recommendations on the optimal lighting arrangement based on the shed's dimensions and layout.
• Two to four general power points — These will be sufficient for plugging in a charger, a radio, or a drop saw when necessary. Expect standard power points and switches to operate on a single circuit, providing versatility for your storage needs.
• External light — A weatherproof LED light positioned above the door will enhance visibility, helping you avoid fumbling around in the dark when entering or exiting the shed.

Designing a Fully Equipped Powered Workshop Shed

If you frequently use power tools such as drop saws, bench grinders, and dust extractors, a more advanced wiring configuration becomes essential to ensure efficiency and safety:

• Multiple circuits — Having separate circuits for lighting, general power, and dedicated tool outlets will prevent flickering lights whenever a tool is activated, ensuring a smoother workflow and a safer working environment.
• Higher-rated power points — Providing 15-amp or 20-amp outlets is crucial for accommodating heavier tools that require more power to operate effectively, enhancing the overall functionality of your workshop.

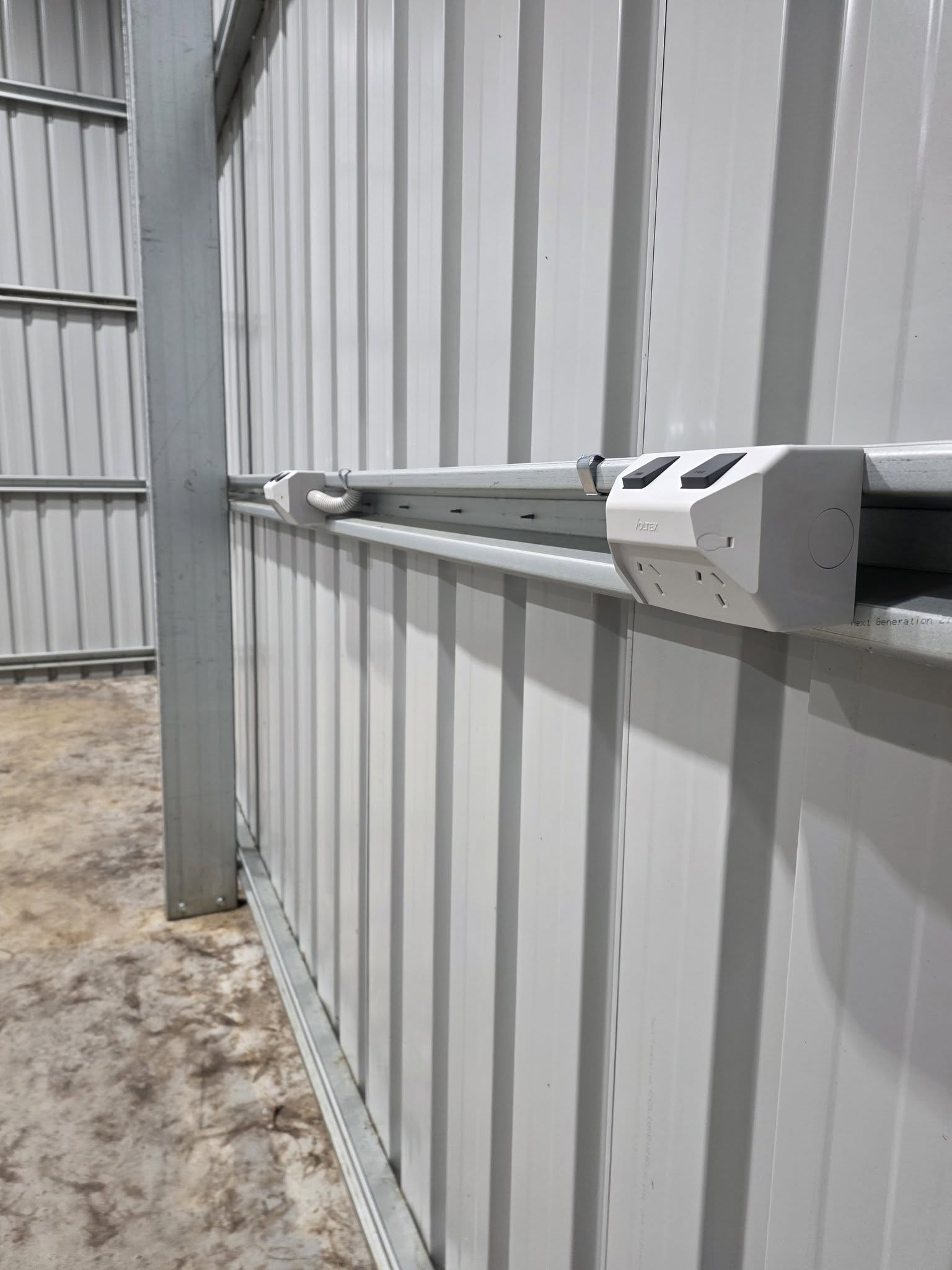

• Strategically placed additional power points — Installing outlets at bench height rather than merely at skirting level, and considering the actual locations of your workbenches, will significantly enhance efficiency during your projects.

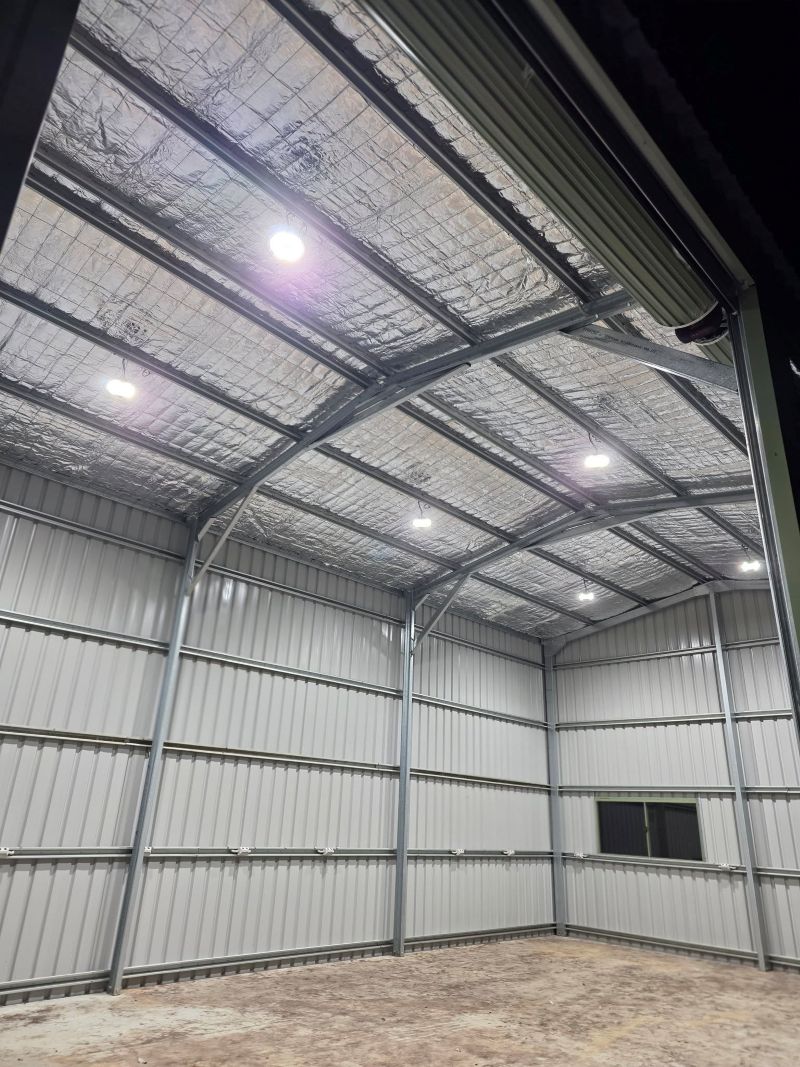

• Dedicated lighting — Ensure brighter, more focused lighting is installed over work areas. Consider utilising LED high-bays for larger sheds to significantly improve visibility during detailed tasks, making your workshop a safer place to work.

For comprehensive guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which provides valuable insights and tips.

Establishing a Comprehensive Workshop With Three-Phase Power Supply

If you plan on operating heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, single-phase power may not be adequate. In such circumstances, considering three-phase power is advisable to ensure efficiency and reliability.

Three-phase power offers more consistent and higher-capacity energy. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast, so plan accordingly for your projects.
• Install a three-phase sub-board in the shed, equipped with appropriate breakers and RCDs to ensure safety and compliance, protecting your equipment from potential faults.
• Run heavier cabling — It is important to note that three-phase cable runs are generally more costly, especially over long distances, so budget accordingly.
• Install three-phase outlets — These industrial-grade sockets must be rated for the equipment being utilised to ensure safety and efficiency, providing reliable power for your workshop needs.

If you are unsure whether three-phase power is necessary for your requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on when it is beneficial and when a well-designed single-phase setup will be sufficient. We also provide complete installations for three-phase switchboards should you choose that route.

Why Is Surge Protection Essential for Your Shed's Safety?

Properties located on acreage in the Mid North Coast often experience severe lightning storms. A direct or nearby strike can cause extensive damage to everything housed within your shed, jeopardising tools, chargers, refrigerators, and all equipment connected to power.

Installing a high-quality surge protection device within the sub-board acts as an affordable form of insurance. This device absorbs voltage spikes before they reach your valuable equipment, preventing costly damages. For sheds housing expensive tools or a workshop setup, surge protection is an absolute necessity to safeguard your investments and maintain operational efficiency.

If your property utilises a generator for backup power, your electrician can also install a generator changeover switch, enabling the shed (and the house) to seamlessly switch to generator power safely during outages, ensuring uninterrupted power supply.

What Are the Regulations Regarding Council Approval and Compliance in NSW?

There are several crucial regulations that you need to be aware of when planning your shed wiring project:

• All electrical work in NSW must be carried out by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to reduce labour costs, all electrical tasks—including cabling, connections, sub-board installation, and more—must be executed by a licensed contractor who will issue a Certificate of Compliance (CCEW), ensuring all work meets legal standards.
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will manage this aspect of the installation efficiently to ensure compliance and safety, protecting your investment.
• If the shed is newly constructed, development approval may be required depending on your council and the dimensions of the shed. While the electrical work itself does not necessitate a separate permit, the overall building project might, so it is essential to check with your local council.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to ensure safety and legality, providing you peace of mind.

Estimating Costs for Shed Wiring on Acreage: What to Expect

Each shed presents unique challenges—distance from the house, the requirement for single-phase or three-phase power, the number of circuits needed, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast to assist you in budgeting:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500, this option provides essential functionality for simple storage needs.
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500, this setup accommodates a wider range of tools and equipment for more extensive projects.
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+, this comprehensive installation ensures maximum efficiency and safety for serious workshop users.

Longer cable runs (50m+), rocky terrain necessitating a rock saw, or upgrades for three-phase supply will all increase the total cost. The most reliable method to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed to provide tailored advice.

For a customised quote tailored to your specific setup, please call us at 0402 079 803 or contact us here.

Addressing Your Most Common Questions About Shed Wiring

Can I Wire My Shed Myself in NSW?

No, all electrical work in NSW must be performed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other tasks. Attempting DIY electrical work is not only illegal but also poses significant dangers to your safety and property. Your electrician will provide a Certificate of Compliance upon completion of the work, ensuring it meets legal standards and safety protocols.

How Deep Should Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth typically needs to be increased to 600mm or more. Your electrician will determine the appropriate depth for your specific property, ensuring compliance with safety regulations and protecting your investment.

Do I Need a Separate Meter for My Shed?

In most situations, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed is utilised as a distinct dwelling or commercial premises, which will require further discussions with your council and your energy distributor to ensure compliance with local regulations.

How Long Does It Take to Wire a Shed on Acreage?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—generally takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth required prior to commencing work. Please note that three-phase installations often take longer, as the supply connection must first be arranged with the distributor before installation can begin, so plan accordingly.

Can I Run Power From the Shed to Other Buildings?

Yes, it is feasible; however, each additional building will require its own appropriately rated cable run and may need its own sub-board based on electrical load. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are sufficient from the outset, rather than making subsequent additions that could lead to complications in your electrical system.

Ensure Safe and Efficient Wiring for Your Shed

If you reside on acreage around Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is committed to ensuring your shed is wired correctly—whether it comprises a simple light-and-power setup or an extensive three-phase workshop to meet your needs.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote tailored to your specifications.
