Shed Wiring Tips: Key Installation Advice for Professionals

If you possess a shed on your acreage property and are tired of relying on extension leads from your home, it is crucial to contemplate having it professionally wired. Regardless of whether your shed serves as a basic storage shed requiring merely a light and a power point or a fully outfitted workshop equipped with welders and compressors, a systematic approach is necessary. In NSW, the only legal and safe way to accomplish this is by hiring a licensed electrician.

This comprehensive guide elucidates the steps necessary to provide electrical power to your shed, detailing the specific installations your electrician will undertake and offering a cost estimation relevant to the Mid North Coast region.

Initiate Your Shed Wiring Project by Planning the Cable Run

The most vital aspect of any shed wiring endeavour is establishing a reliable power source that connects your main switchboard to the shed. Depending on the dimensions of your property, this distance can range from 30 to over 100 metres. The longer the cable run, the larger the cable size required to effectively manage voltage drop, thus ensuring your shed receives the necessary power efficiently. It is imperative to approach this with careful consideration and planning to avoid future complications.

You essentially have two primary options for your cable run:

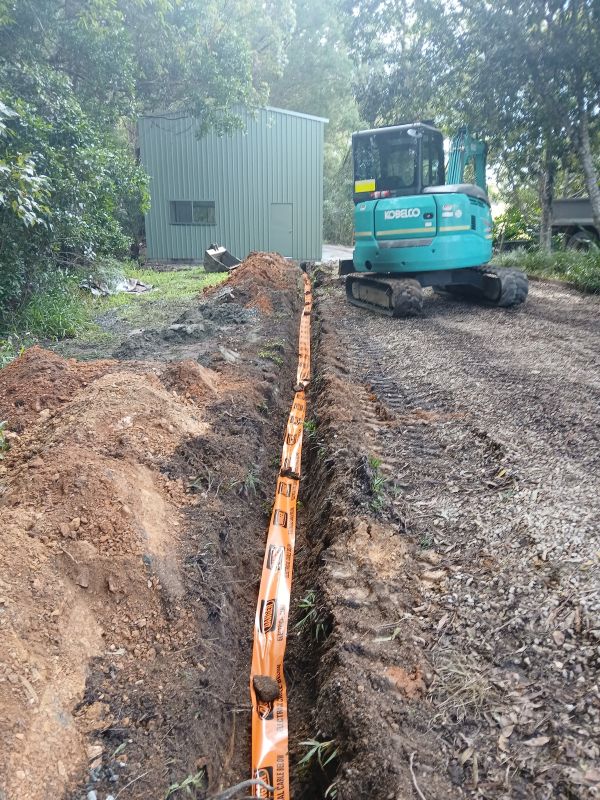

• Underground cable run — This is the preferred and aesthetically pleasing choice. A licensed electrician will install heavy-duty cable through orange conduit, buried at a minimum of 500mm deep (or deeper if vehicles are anticipated to traverse the area). This method protects the cable from harsh weather conditions, animals, and falling branches, rendering it ideal for most acreage properties.
• Overhead cable run — Although less common in contemporary installations, this method may be essential if you encounter solid rock or difficult terrain complicating trenching. Overhead installations must comply with specific clearance heights and supporting poles, which can significantly increase overall costs.

For the majority of properties in Bellingen, Coffs Harbour, and the Mid North Coast, the underground option remains the optimal choice. Your electrician in Bellingen can evaluate your site and suggest the most effective route for your installation, ensuring efficiency and safety in the process.

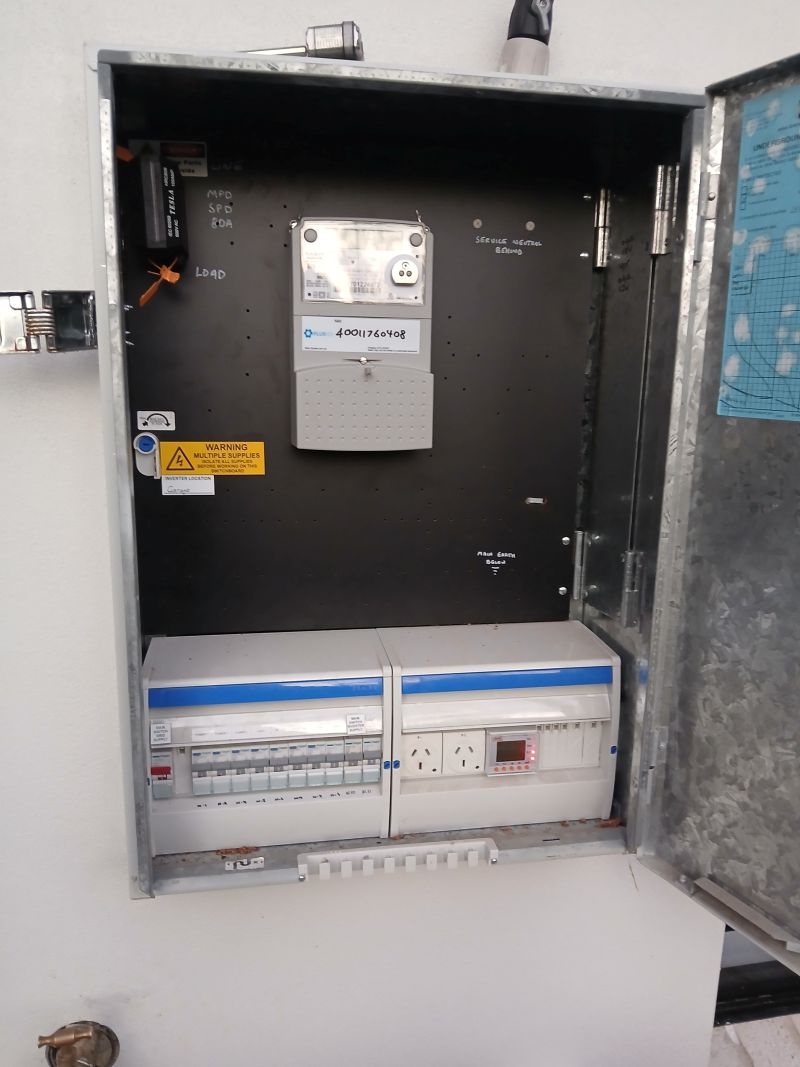

Establish a Dedicated Sub-Board for Effective Shed Power Management

It is insufficient to merely run a single cable to the shed and expect to plug in devices without additional infrastructure. Any shed receiving a proper power supply must be equipped with its own dedicated sub-board, also known as a distribution board. This configuration acts as a mini switchboard within the shed, efficiently managing all the electrical circuits and ensuring safe operation.

Your sub-board will typically consist of the following components:

• Main switch — This switch allows you to isolate all power to the shed independently from your main house, providing an extra layer of safety and control over your electrical supply.
• RCDs (safety switches) — These devices are mandatory under NSW electrical regulations. They instantaneously cut off power within milliseconds if a fault occurs, which is essential in a shed environment often exposed to moisture, dust, and potential damage.
• Circuit breakers — These provide individual protection for each circuit in your shed, covering lighting, general power, and dedicated tool circuits, ensuring you can operate multiple devices without risking overload.

If your house's main switchboard is outdated, your electrician may also recommend upgrading the switchboard to accommodate the additional load directed to the shed, ensuring that all connections remain safe and efficient throughout their use.

What Key Installations Are Essential Inside Your Shed?

The specific installations carried out by your electrician inside the shed will be tailored to its intended use. Here’s a comprehensive breakdown of what these installations typically include, ensuring that your shed meets all your operational needs effectively.

Optimising a Basic Storage Shed Setup

For a shed primarily designated for storing tools, a ride-on mower, or general equipment, consider the following installations:

• LED batten lights — Installing one or two ceiling-mounted LED battens can efficiently illuminate the entire space. Your trusted electrician can offer advice on the most suitable lighting layout based on the shed's dimensions and your specific storage requirements, ensuring maximum brightness and visibility.
• Two to four general power points — This quantity is sufficient for plugging in chargers, radios, or a drop saw as needed. Standard power points and switches will operate on a single circuit, ensuring versatility for various tools and equipment.
• External light — An outdoor-rated LED light above the door ensures that you can access the shed safely without fumbling in the dark, enhancing both safety and convenience during night-time operations.

Designing a Powered Workshop Shed for Maximum Efficiency

If you frequently utilise power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and necessitate meticulous planning:

• Multiple circuits — Establish separate circuits for lighting, general power, and specialised power tool outlets. This setup prevents lights from flickering every time you activate a saw, ensuring a stable and productive working environment.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively accommodate heavier tools, ensuring you have the correct power supply for your equipment and preventing potential overload issues.

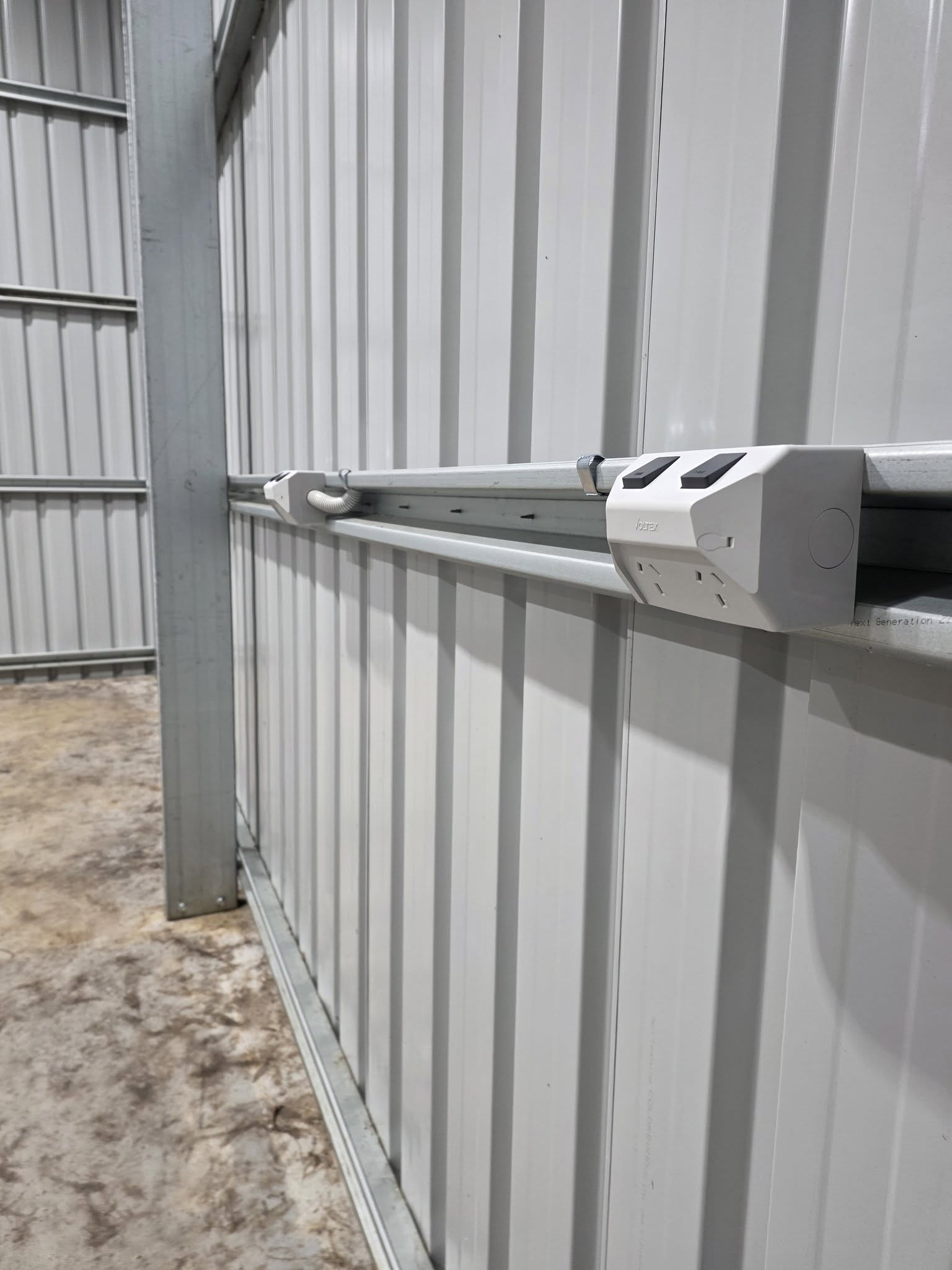

• Increased number of power points with optimal placement — Ensure outlets are positioned at bench height rather than solely at skirting level, facilitating ease of use based on your workbench arrangement and workflow.

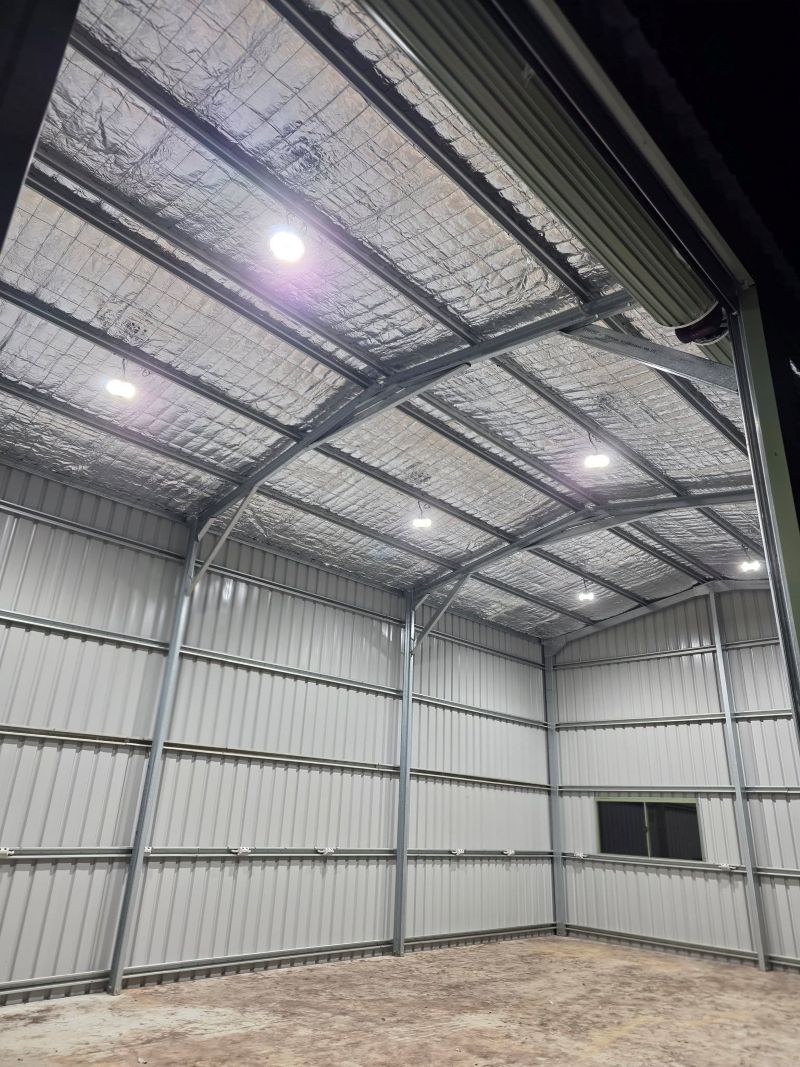

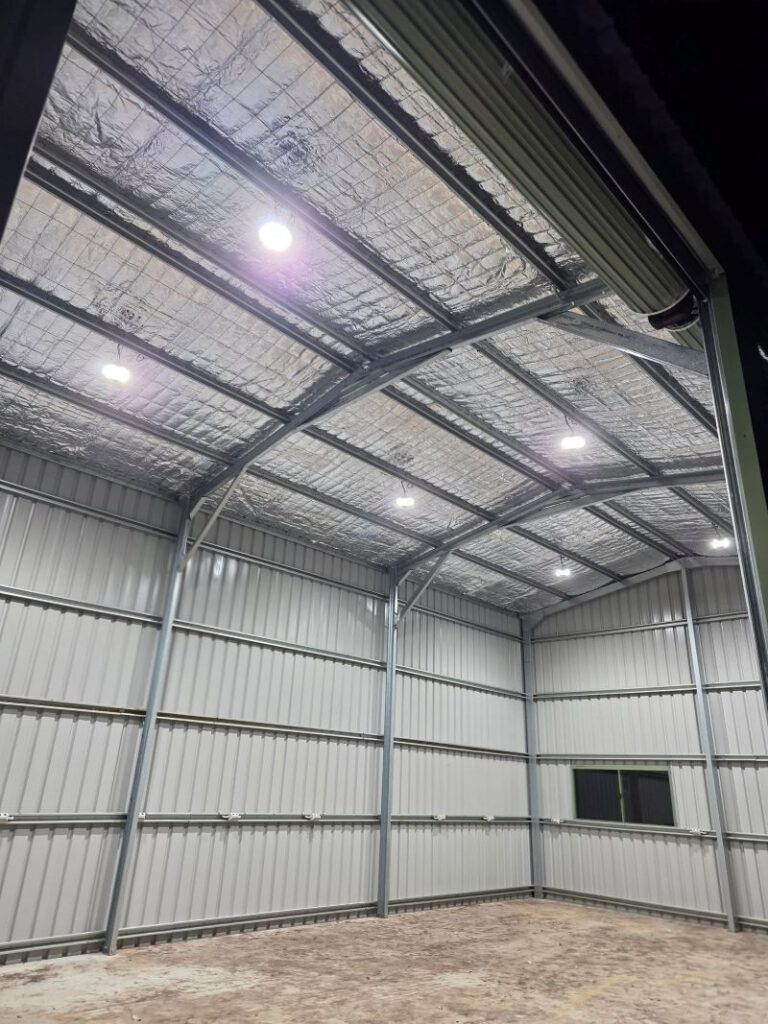

• Dedicated lighting — Provide brighter, targeted lighting over work areas, utilising LED high-bays for larger sheds to enhance visibility and safety during intricate tasks.

For comprehensive guidance on establishing dedicated circuits for heavy tools, check out Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which delves into the specifics of effective wiring solutions and safety considerations.

Equipping a Full Workshop with Essential Three-Phase Power

If your activities involve heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not suffice. This is where three-phase power becomes essential to meet your operational demands effectively.

Three-phase power offers a more stable and higher-capacity power supply, allowing you to operate multiple heavy-duty machines simultaneously without compromising performance. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast area, so timely planning is crucial).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs to ensure safety and compliance with local regulations.
• Utilise heavier cabling — Keep in mind that three-phase cable runs can incur higher costs, especially over extended distances, so careful planning and budgeting are vital.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you plan to operate, providing the necessary power for effective and safe functioning.

If you’re uncertain about whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this resource discusses when it is beneficial and when a properly configured single-phase system will suffice. We also offer full three-phase switchboard installation if that aligns with your operational needs.

Investing in Crucial Surge Protection for Your Shed

Properties located on the Mid North Coast often experience severe lightning storms. A direct or nearby strike can potentially damage everything within your shed, including tools, chargers, fridges, and any devices plugged in, resulting in costly repairs and disruptions.

Investing in a reliable surge protection device, installed within the sub-board, acts as inexpensive insurance against electrical surges. It absorbs voltage spikes before they can reach and damage your valuable equipment. For sheds housing expensive tools or workshop setups, this preventive measure proves invaluable and can save you significant costs over time.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and the house can safely transition to generator power during outages, maintaining critical operations during emergencies and unforeseen events.

What Are the Key Requirements for Council Approval and Compliance?

Here are several essential considerations to keep in mind when planning your shed wiring project:

• All electrical work in NSW must be carried out by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation — must be managed by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion of the project.
• Depth of underground cable must adhere to AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure compliance with during the installation process to guarantee safety and reliability.
• If the shed is newly constructed, you may require development approval depending on your local council and the size of the shed. While the electrical work itself might not necessitate a separate permit, the overall construction may require one to adhere to local building regulations.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations and standards.

Understanding the Costs Associated with Shed Wiring on Acreage

Each shed presents unique challenges — including distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions impacting trenching. However, here’s a realistic cost guide for the Mid North Coast area:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+

Be aware that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a clear understanding of your shed's intended use and requirements.

If you would like a straightforward quote tailored to your specific setup, feel free to call us at 0402 079 803 or contact us here for assistance.

Addressing Common Queries Regarding Shed Wiring

Can I Wire My Shed Myself in NSW?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This encompasses tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers to you and your property. Your electrician will issue a Certificate of Compliance once the work has been completed, ensuring everything meets the required safety standards.

How Deep Must Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth for your specific property circumstances, ensuring adherence to safety regulations and standards.

Do I Need a Separate Meter for My Shed?

In most instances, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed serves as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor to ensure compliance with local regulations and standards.

How Long Does It Take to Wire a Shed on Acreage?

A basic shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench is prepared. If you're digging the trench yourself, your electrician can provide guidance on the precise route and depth before you commence. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first, so advanced planning is advisable.

Can I Run Power From the Shed to Other Buildings?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may necessitate its own sub-board depending on the load requirements. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are adequate from the outset, rather than trying to add components later and potentially creating issues with power distribution and safety.

Ensure Your Shed Wiring is Completed Correctly with Professional Assistance

If you are situated on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in establishing your shed correctly — whether it involves a basic lighting and power setup or a comprehensive three-phase workshop installation tailored to your specific needs and requirements.

Give us a call at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote that meets your requirements.
